MR Linac (MRL) systems enable delivery of radiotherapy with on-line MRI.  Functional imaging on the MRL permits identification, mapping and tracking of tumour sub-regions, with the potential to introduce biologically adaptive radiotherapy (Datta 2018 ClinOnc). Here we report the first application of oxygen-enhanced MRI (OE-MRI) on an MRL to identify and map tumour hypoxia.

A dynamic 3D inversion recovery turbo field echo (IR-TFE) OE-MRI sequence was developed on a Philips Ingenia 1.5T MR system (MRSim) in 12 healthy volunteers and 4 patients with treatment naïve head and neck (H&N) carcinoma. This protocol was modified and implemented on an Elekta-Philips 1.5T MRL with different receive coils and required modification of repetition and echo times due to hardware differences. Other hardware fitting steps included retrofitting of gas delivery in the MRL bunker; installation of gas ports, delivery tubing and MR conditional blender providing 15 l/min; and installation of a contrast agent power injector for dynamic contrast-enhanced (DCE)-MRI. Participants were recruited after providing written informed consent on a local ethics approved protocol.

MRL OE-MRI was acquired in 4 healthy volunteers and a patient with H&N carcinoma. T₁ measurement was carried out using an IR-TFE sequence with multiple TIs and a dynamic IR-TFE series during delivery of medical air (volumes 1-25), followed by 100% oxygen (volumes 26-70) and back to medical air (volumes 71-91). Analysis was carried out in MATLAB (Mathworks).

Native T₁ maps enabled conversion of signal change to ΔR₁ (where ΔR₁ = R_1,O2 – R_1,air). In all volunteers, ΔR₁ was calculated in the nasal concha (NC). Patient tumour volumes were delineated on T₁ post contrast images and ΔR₁measurements obtained. Perfused tumour voxels (DCE signal increase p<0.05) were classified as oxygen enhancing (Oxy-E) (OE signal increase p<0.05; suggesting normoxia) or oxygen refractory (Oxy-R) (suggesting hypoxia).

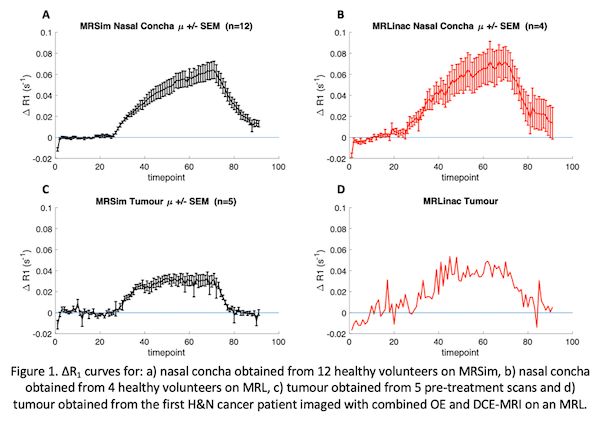

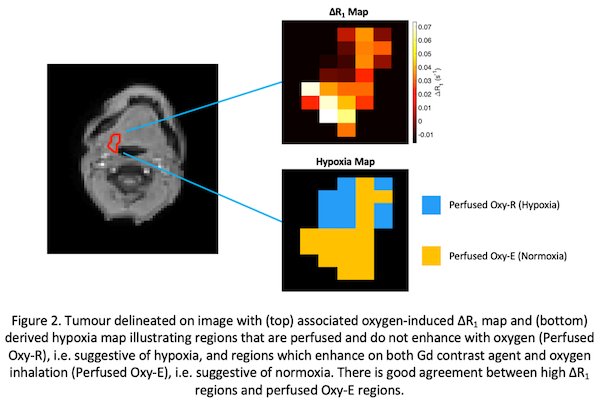

Volunteer NC ΔR₁ was 0.059 ± 0.027 s^-1 (p < 0.001, group ΔR₁ change) and 0.065 ± 0.030 (p < 0.001) on the MRSim and MRL respectively (Figure 1a-b). There was no significant difference in NC ΔR₁ between the groups on the two systems (p=0.6, unpaired t-test). Patient tumour mean ΔR₁ = 0.031 ± 0.035 (p < 0.001) (n=5 patients) on the MRSim and ΔR₁ = 0.035 ± 0.011 (p < 0.001) (n = 1 patient) on the MRL (Figure 1c-d). Hypoxia maps showed distinct ‘hypoxic’ and ‘normoxic’ tumour sub-regions and are presented with the tumour ΔR₁ map in figure 2.

We have successfully translated OE-MRI onto an MRL for the first time. OE-MRI measurements in normal tissue (NC) and tumour are consistent between the MRSim and the MRL at 1.5 T. This novel technique facilitates introduction of hypoxia adapted radiotherapy on the MRL.
