Does rectal volume on pre-radiotherapy scans predict prostate motion during treatment?
Sophie Alexander,
United Kingdom
PD-0492
Abstract
Does rectal volume on pre-radiotherapy scans predict prostate motion during treatment?
Authors: Sophie Alexander1, Alison. C. Tree2, Rosalyne Westley3, Uwe Oelfke4, Helen. A. McNair5
1The Royal Marsden NHS Foundation Trust / The Institute of Cancer Research, Radiotherapy , Sutton, United Kingdom; 2The Royal Marsden NHS Foundation Trust / The Institute of Cancer Research, Uro-Oncology, Sutton, United Kingdom; 3The Royal Marsden NHS Foundation Trust/ The Institute of Cancer Research, Uro-Oncology, Sutton, United Kingdom; 4The Royal Marsden NHS Foundation Trust/ The Institute of Cancer Research , Joint Department of Physics, Sutton, United Kingdom; 5The Royal Marsden NHS Foundation Trust/ The Institute of Cancer Research, Radiotherapy, Sutton, United Kingdom
Show Affiliations
Hide Affiliations
Purpose or Objective

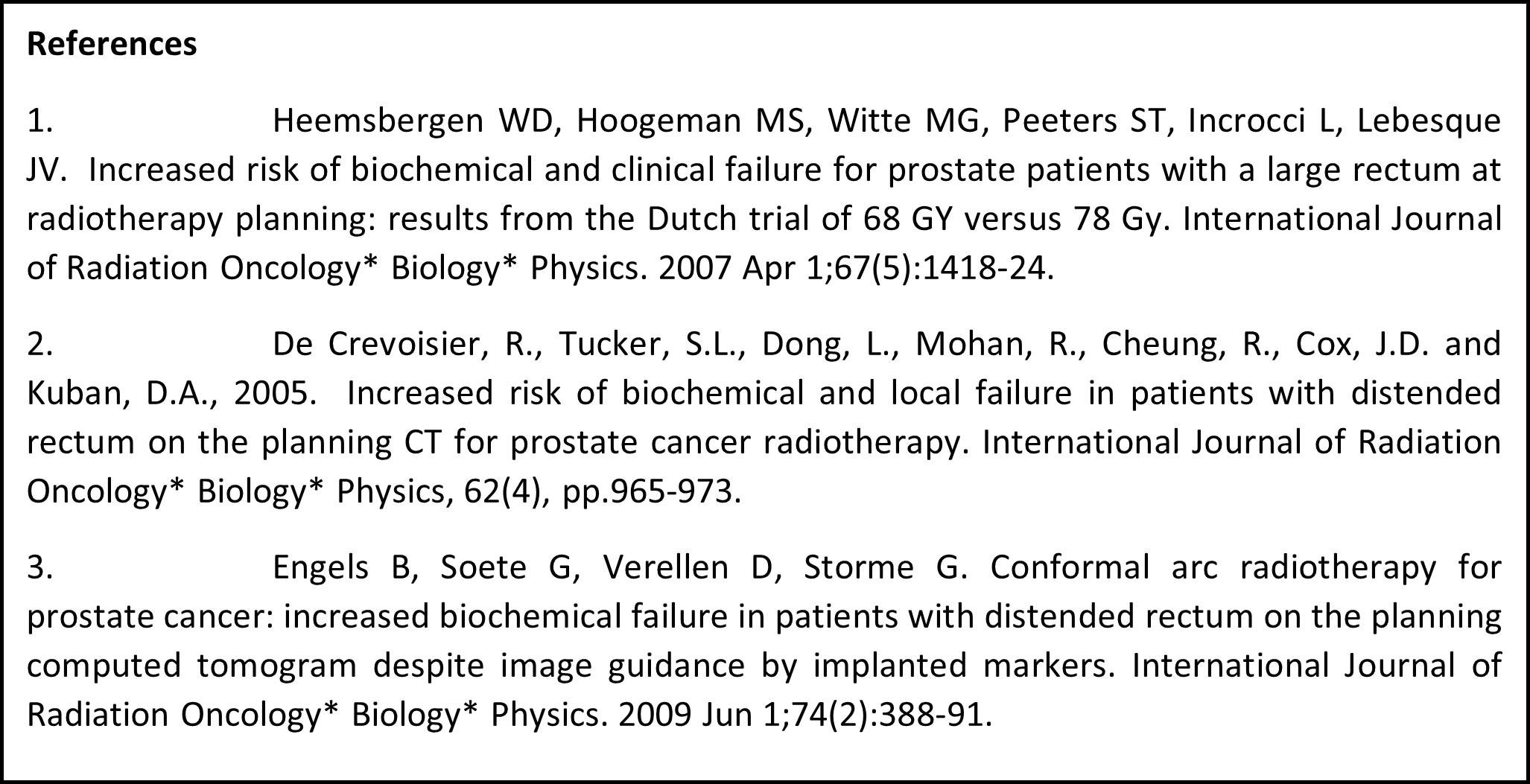

Biochemical failure rates following radical radiotherapy to localised prostate cancer (PCa) are reported as higher in patients with larger rectal volumes on pre-radiotherapy scans[1-3]. The literature posits that distended rectums promote excessive prostate motion (PM) during radiotherapy, causing target underdosing[1-3]. Data is largely from patients treated with 2D bone based IGRT, with motion not quantified. Volumetric IGRT, aligning to prostate is now commonplace and provides opportunity to test the theory; Do large rectal volumes on pre-radiotherapy scans predict greater PM during treatment?
Material and Methods
Rectal volume, inter- and intrafraction motion were retrospectively calculated for 40 patients who received PCa radiotherapy: 20 prescribed 36.25Gy in 5#’s on Unity MR-linac (MRL) (Elekta, Sweden) and 20 prescribed 60Gy in 20#’s on TrueBeam c-arm linac (CLIN) (Varian, USA).
The rectum was contoured on T2-weighted diagnostic MR (dMRI) and planning CT (pCT) images (RayStation, RaySearch, Sweden). Rectal preparation was given prior to pCT using micro enemas, but not for dMRI.
Interfraction motion data, registering to prostate, was retrieved. MRL Intrafraction PM was taken as the difference in prostate position from pre- to post-treatment T2-weighted MRI. CLIN data was the deviation in prostate position on post-treatment CBCT from planned, after pre-treatment motion correction.
Data was analysed using R-Studio (RStudio, USA). Total patient specific, inter- and intrafraction median (range) motion was calculated in each plane. Correlation between dMRI and pCT rectal volume and motion was examined using Spearman’s roe (significant p<0.01). Patients were then grouped by dMRI or pCT rectal volume ≤ or > median volume and < or ≥ 90cm3 (literature volume cut-off[1]). Difference in inter- and intrafraction motion was compared between groups using a Mann-Whitney U Test (significant p<0.01).
Results
All patients had a pCT, 39/40 had a dMRI, the patient without dMRI was removed from analysis. Volume and motion data was not normally distributed. Inter- and Intrafraction motion was calculated for 474 and 430 fractions respectively.
Median (range) rectal volume on dMRI and pCT was 74.47cm3 (31-246) and 63.99cm3 (33-162) respectively, not significantly different (p=0.1311). A weak positive correlation between dMRI and pCT rectal volume was found, 0.4558 (p<0.01). No correlation between rectal volume on dMRI or pCT and inter- or intrafraction motion presented.

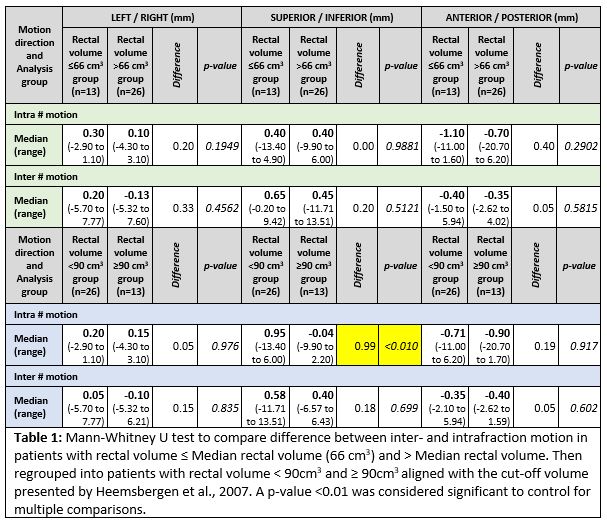

Median rectal volume on dMRI and pCT combined was 66cm3, 26/39 patients had a rectal volume >66cm3 (9 dMRI, 4 pCT, 13 both), 13/39 had a rectal volume ≥90cm3 (10 dMRI, 2 pCT, 1 both). No significant difference in motion between patients with rectal volume ≤ or > median volume presented. Intrafraction superior-inferior median motion was significantly greater in the <90 cm3 volume group (Table 1).
Conclusion
For this patient cohort, larger rectal volumes on pre-radiotherapy imaging did not result in greater target motion during radiotherapy.
