The currently used applicators for locally advanced cervical cancer (LACC) brachytherapy (BT) do not optimally align with individual patient anatomy and have fixed catheter positions and angles limiting treatment plan conformity. Patient-tailored applicators with optimally planned catheter channels could be the solution for this problem. To develop patient-tailored applicators, and to create a representative data set for safety tests and quality management of the patient-tailored applicators, data on the dimensions of the distended vaginal and uterine shape is required. In previous studies, magnetic resonance imaging (MRI) has been successfully used to acquire data on the shape and dimensions of the vaginal cavity and uterus in a healthy population. However, little is known about the distended geometry of LACC patients after concomitant external beam radiation therapy and chemotherapy. Therefore, the aim of this study is to evaluate the vaginal and uterine geometry distended with ultrasound gel in LACC patients.

In total 20 pre-BT MRIs of LACC patients with ultrasound gel inserted in the vaginal cavity were included. The pre-BT MRIs were taken approximately one week before BT treatment. For analysis, the orientation of the MRIs was corrected based on the Pelvic Inclination Correction System (PICS). A set of parameters describing the vaginal and uterine geometry was selected (Figure 1a). The lengths and angles of mid vagina (P0-P1), upper vagina (P1-P2), anterior cervix (P2a-P2), posterior cervix (P2-P2b), endocervical canal (P2-P3), and uterine body (P3-P4) were determined. Furthermore, the left-right (LR) width at point P0, P1, and P2 were evaluated. In addition, frequency distribution maps of the vaginal cavity were made based on 3D models of the delineated MRIs.

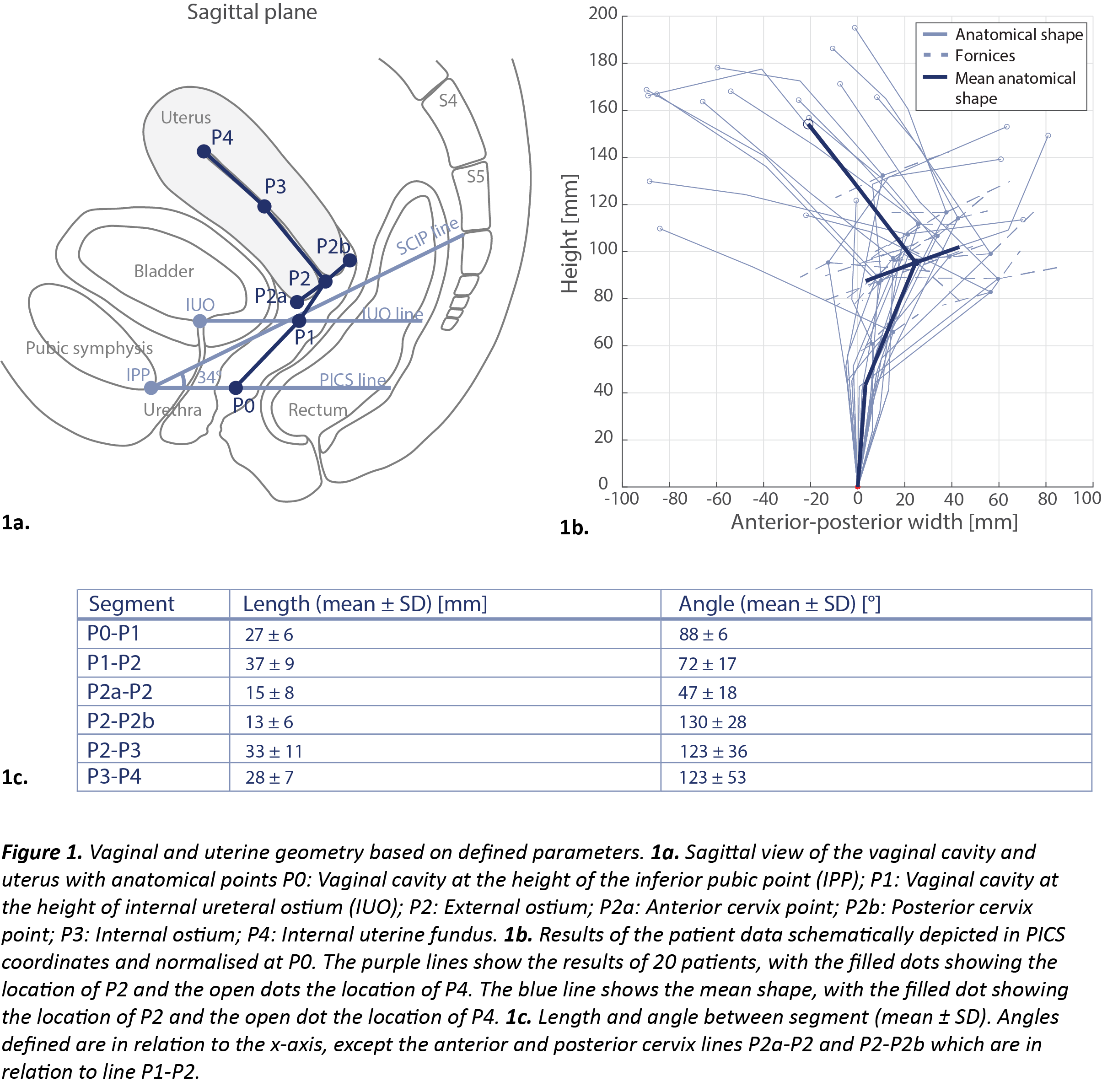

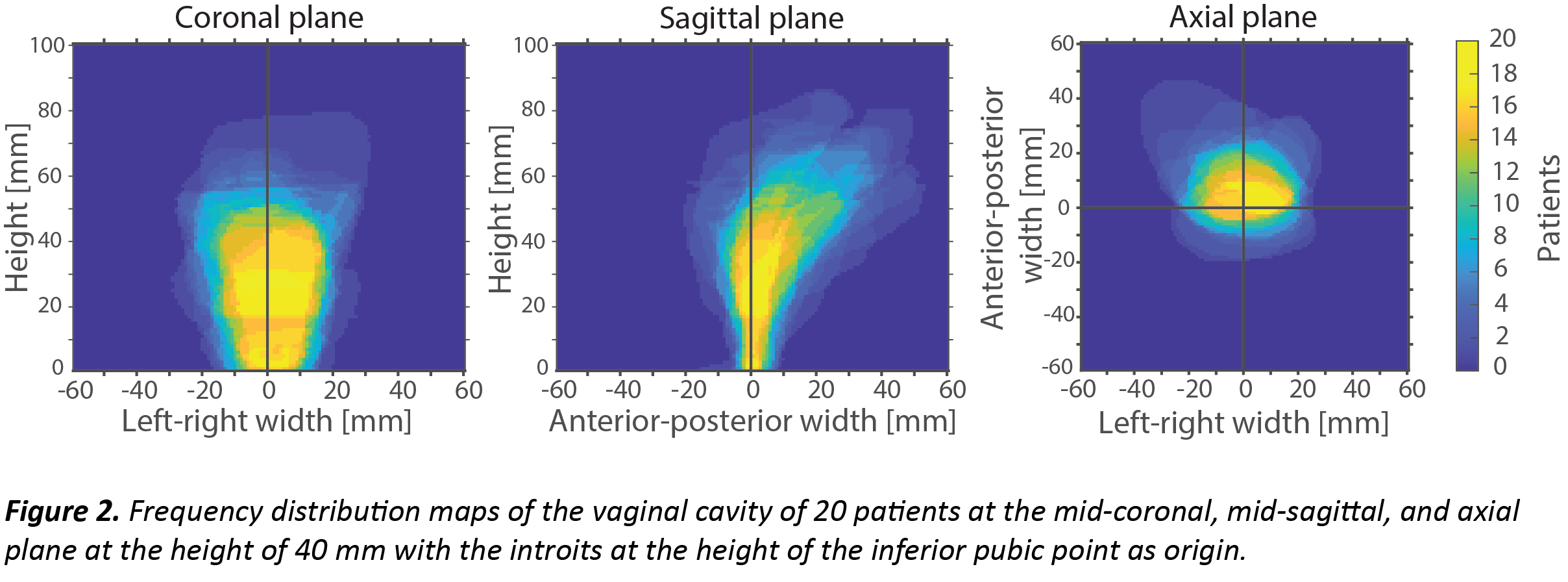

In Figure 1, the lengths and angles between the vaginal and uterine segments are depicted. The LR width (mean ± SD) was 22 ± 7 mm, 35 ± 8 mm, and 34 ± 16 mm at P0, P1, and P2 respectively. In Figure 2, frequency distribution maps of the 3D models of the vaginal cavities are depicted. The mean volume of the 3D models was 48 (range: 12-69) cm³.

In this study the distended vaginal and uterine geometry was evaluated in LACC patients. The large inter-patient variation in length, angle, and width of different sections of the vaginal cavity suggests a patient-tailored design, especially in the top part of the vaginal cavity. The largest variation was seen in the region P2-P4 as indicated by the length of P2-P3, the width at P2, the angle in P3-P4, and the frequency distribution maps. The evaluated parameters and frequency distribution maps are now available and can be used as design parameters and for safety and quality assessment of the patient-tailored applicators for LACC BT.
