Potential of Very High Energy Electron (FLASH) beams in pancreatic and head-and-neck treatments

Annalisa Muscato, Italy

Presentation Number: MO-0477

Abstract

Abstract Title:

Potential of Very High Energy Electron (FLASH) beams in pancreatic and head-and-neck treatments

Authors:

Annalisa Muscato¹, Lorenzo Arsini^2,3, Lorenzo Campana^4,5, Daniele Carlotti^6,7, Angelica De Gregorio^8,6, Francesca De Felice⁹, Cinzia Di Felice¹⁰, Marta Fischetti^11,12, Michele Fiore^7,13, Gaia Franciosini^14,6, Michela Marafini^14,15, Valerio Marè¹⁶, Ilaria Mattei¹⁷, Massimiliano Pacilio¹⁸, Vincenzo Patera^8,19, Sara Ramella^16,20, Angelo Schiavi^19,8, Adalberto Sciubba^14,19, Marco Schwarz²¹, Marco Toppi¹⁹, Giacomo Traini²², Antonio Trigilio^8,6, Alessio Sarti^8,19

¹University La Sapienza of Rome, Department of Scienze e Biotecnologie medico-chirurgiche, Rome, Italy; ²University La Sapienza of Rome, Physics Department, Rome, Italy; ³INFN,Isituto Nazionale Fisica Nucleare, Section of Rome 1 , Rome, Italy; ⁴INFN, Istituto Nazionale Fisica Nucleare , Section of Rome 1 , Rome, Italy; ⁵University La Sapienza of Rome, Department of Scienze e Biotecnologie medico-chirurgiche, Rome , Italy; ⁶University La Sapienza of Rome, Physics Department , Rome, Italy; ⁷Fondazione Policlinico Universitario Campus-Bio Medico, Operative Research Unit of Radiation Oncology, Rome, Italy; ⁸INFN, Istituto Nazionale Fisica Nucleare, Section of Rome 1, Rome, Italy; ⁹Azienda Ospedaliero-Universitaria Policlinico Umberto I, Department of Radiological,Oncological and Pathological Sciences, Rome, Italy; ¹⁰Azienda Ospedaliero-Universitaria Policlinico Umberto I, Unità di Fisica Sanitaria , Rome, Italy; ¹¹University La Sapienza of Rome, Department of Scienze di Base e Applicate per l'Ingegneria, Rome, Italy; ¹²INFN,Istituto Nazionale Fisica Nucleare, Section of Rome 1 , Rome, Italy; ¹³University Campus-Bio Medico of Rome, Research Unit of Radiation Oncology, Department of Medicine and Surgery , Rome, Italy; ¹⁴INFN, Istituto Nazionale Fisica Nucleare, Section of Rome 1 , Rome, Italy; ¹⁵Museo Storico della Fisica e Centro Studi e Ricerche “E.Fermi”, -, Rome, Italy; ¹⁶Fondazione Policlinico Universitatio Campus-Bio Medico, Operative Research Unit of Radiation Oncology, Rome, Italy; ¹⁷INFN, Istituto Nazionale Fisica Nucleare, Section of Milan , Milan, Italy; ¹⁸Azienda Ospedaliero-Universitaria Policlinico Umberto I, Unità di Fisica Sanitaria, Rome, Italy; ¹⁹University La Sapienza of Rome, Department of Scienze di Base e Applicate per l’Ingegneria, Rome, Italy; ²⁰Università Campus Bio-Medico of Rome, Research Unit of Radiation Oncology, Department of Medicine and Surgery, Rome, Italy; ²¹Fred Hutch Cancer Center, Radiation Oncology Department , Seattle, USA; ²²INFN, Istituto Nazionale Fisica Nucleare , Section of Rome 1, Rome, Italy

Show Affiliations

Purpose or Objective

External beam radiotherapy is currently performed with either photons (RT), protons (PT) or heavier ions like 12C. VHEE beams (100-200 MeV) for the treatment of deep seated tumors are now being considered as well due to the developments in the field of the C-band electron acceleration and FLASH radiotherapy. Compact accelerators with high gradients (~50 MeV/m) will provide ultra-high dose rate (UHDR) beams (>40 Gy/s) suitable for clinical implementation. We investigated how VHEE could be used in the treatments of deep seated tumors, working on head and neck and pancreatic cancer cases, and compared them with conventional RT or PT.

Material and Methods

We implemented and developed a VHEE treatment plan using an accurate Monte Carlo simulation of the electrons interaction with the patient tissues and included the FLASH effect modelling as a function of the absorbed dose. We studied in detail the feasibility of treating patients with VHEE with kinetic energies in the 70 – 130 MeV range. From the results obtained, based on a set of beam delivery parameters and reasonable assumptions on the conditions that have to be met to trigger the FLASH effect, we computed the absorbed dose rate taking into account a Flash Modifying Factor (FMF) accounting also for the dose rate dependence [1]. For calculating the latter, the Average Dose Rate (ADR) definition was used [2].

[1] doi: 10.1016/j.ijrobp.2022.05.038

[2] doi:10.1002/mp.14456

Results

Even without assuming a dose modification factor due to FLASH, VHEE dose distributions are competitive with respect to PT and RT when it comes to both target coverage and organs at risk (OARs) sparing: in Fig 1 (right, solid line – pancreatic cancer) and Fig 2 (bottom right – head and neck district) FMF 1 was used. FLASH effect helps the duodenum sparing in the case of pancreatic cancer in comparison with standard VMAT RT as shown in Fig 1 (right). Such results were obtained with a reasonable treatment hypofractionation (6 Gy/fr) and beam delivery strategy. The implemented thresholds on the dose and on the ADR to enable the FLASH sparing were 4 Gy and 40 Gy/s, respectively.

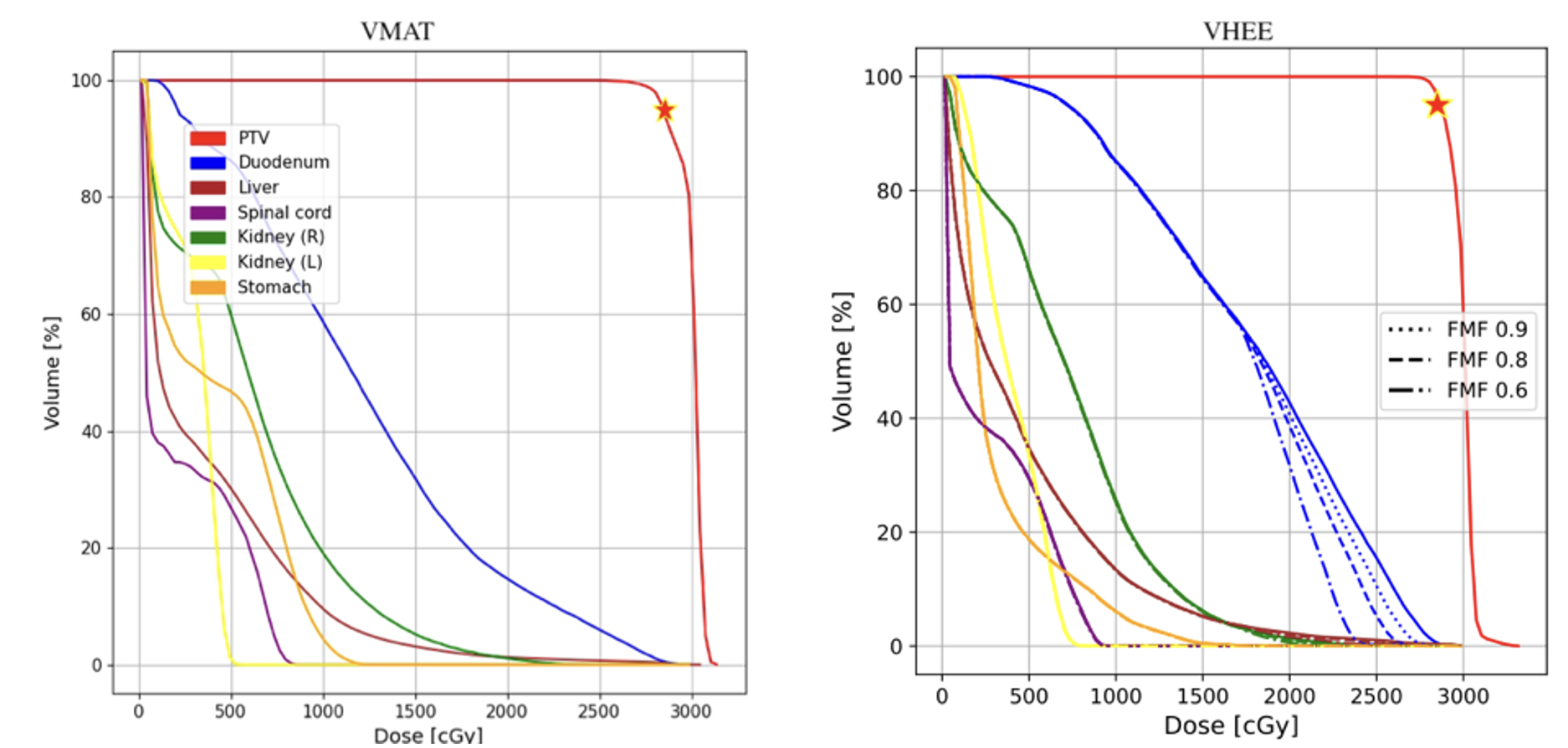

Figure 1: DVH of a treatment of pancreatic cancer. (left) VMAT treatment delivered to the patient (right) VHEE treatment. Solid line implies FMF = 1. Results with FMF in the 0.6 – 0.9 range are shown by dashed and dotted lines.

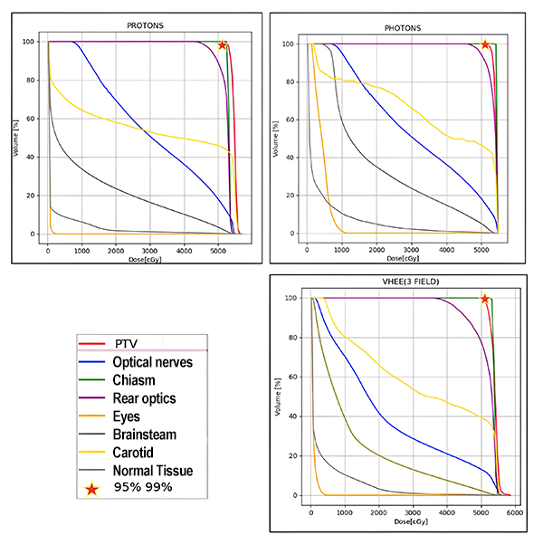

Figure 2: treatment of a Meningioma. (left) proton treatment delivered to the patient. (centre) planning of a 7 fields IMRT treatment. (right) VHEE treatment performed using FMF = 1.

Conclusion

The results obtained without exploiting the FMF demonstrate the VHEE potential in treating deep seated tumors when compared with conventional EBRT both in the H&N and pancreatic pathologies. The impact of UHDR irradiation, both as function of absorbed dose and dose rate has been explored, showing interesting perspectives in the context of dose escalation approaches.
